Calcium Carbonate Pneumatic Convey System: Code Name AIS
Dilute Phase Delivery System
Bulk Delivery system was installed to efficiently store and deliver the processes bulk material to a series of batching vessels. System specification require bulk ingredients to be delivered from a silo to one of two scaling hoppers. Product is then delivered via screw conveyor to the mixer. Bulk powders are being delivered via dilute phase system. System required all compressed air to devices and aerators to be dehumidified.
This Dilute Phase system was controlled via automated PLC system including operating interfaces and safety interlocks.
Project Details
Code Name: AIS
Date 8/2013
Skills Electrical, Mechanical, 3d Modeling, Process Engineering, Project Management, Millwright Services

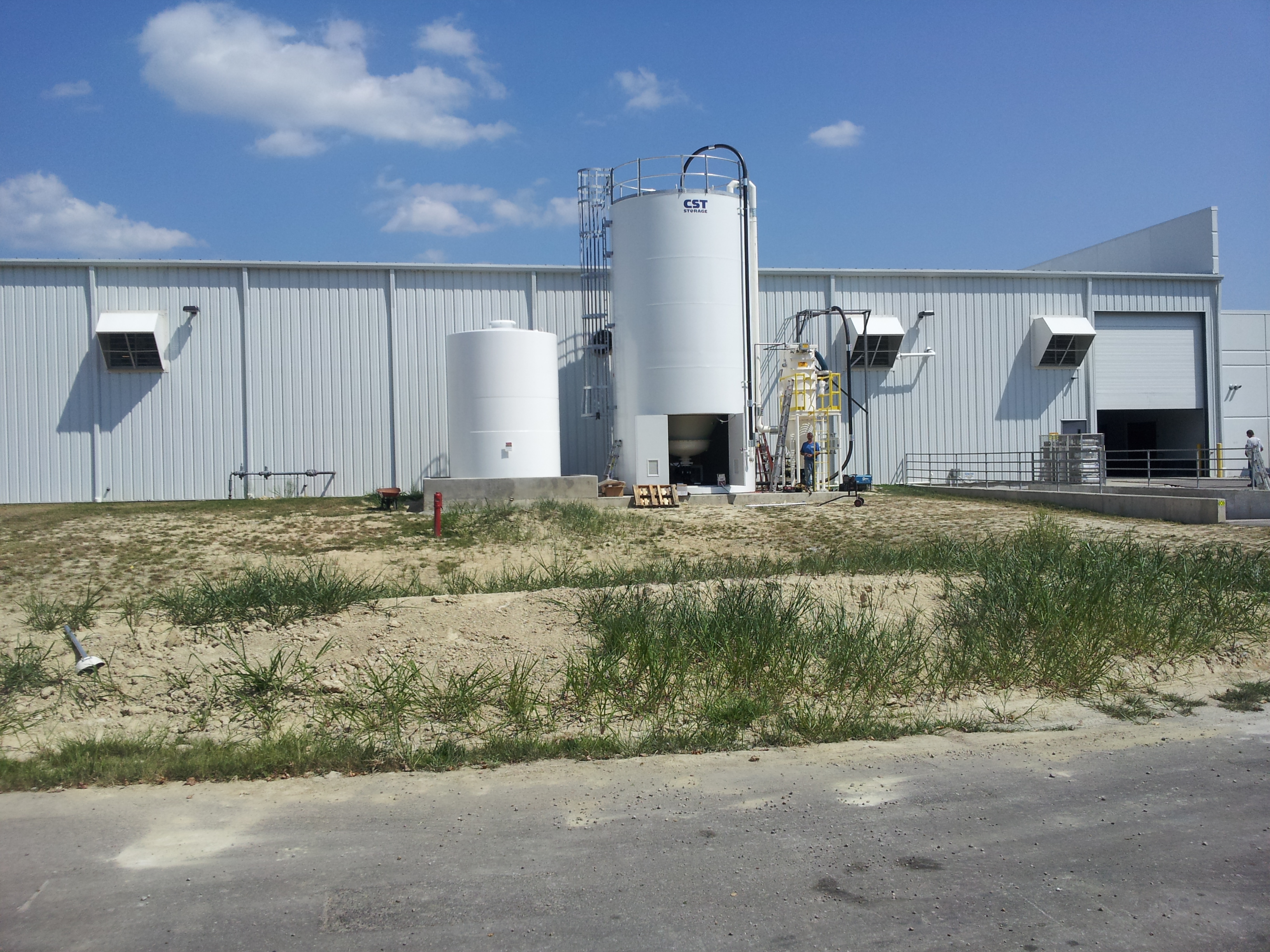

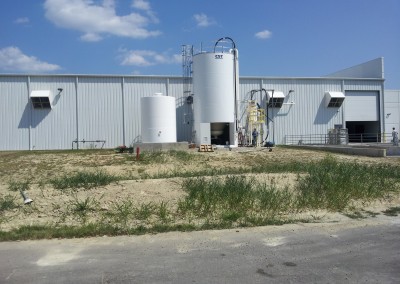

Bulk Silo Storage
Bulk Material Storage

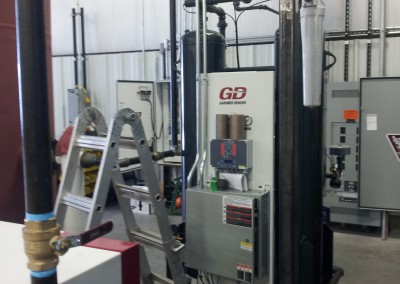

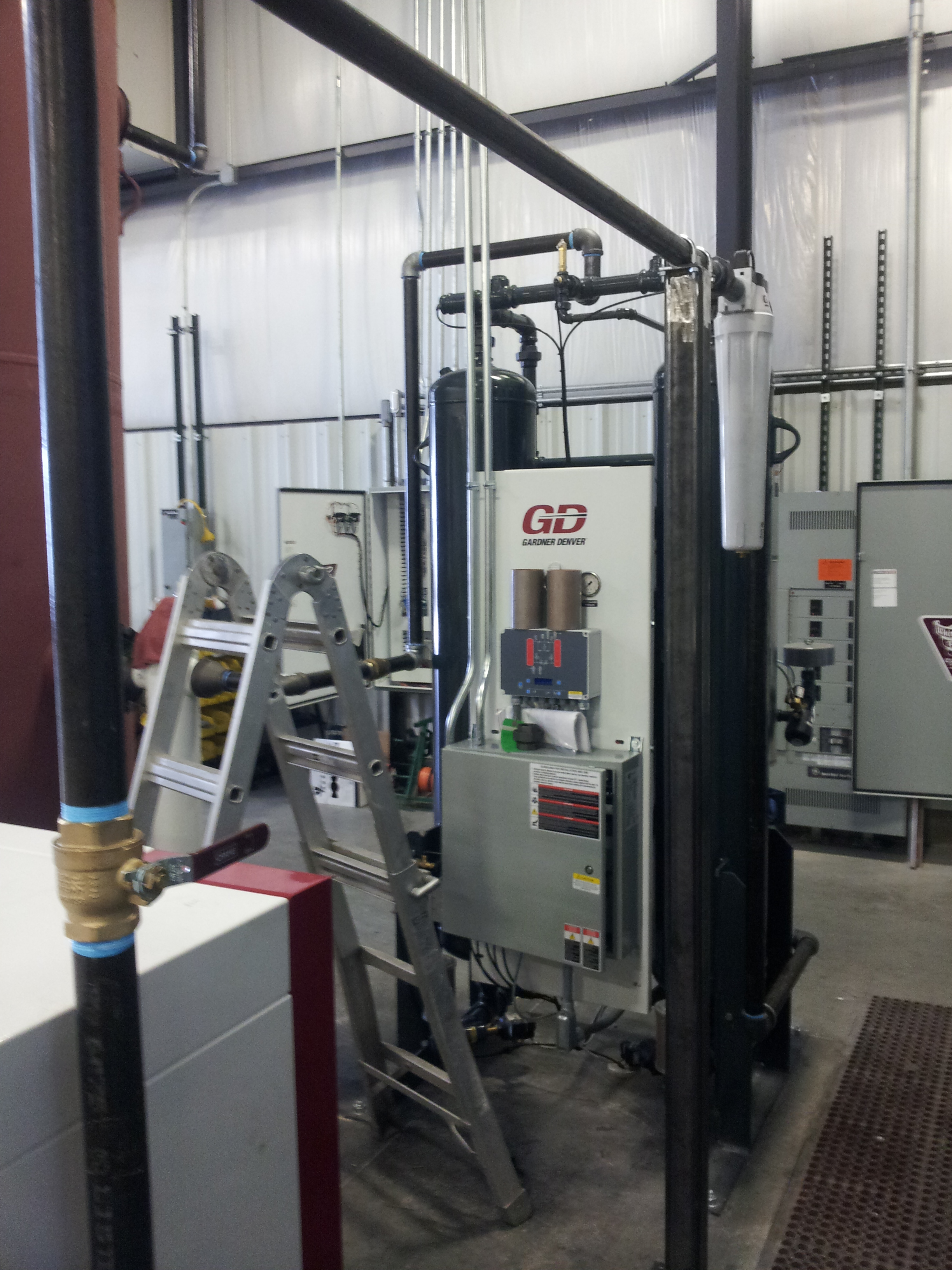

Desiccant Dryer
Compressed Air Desiccant Dryer

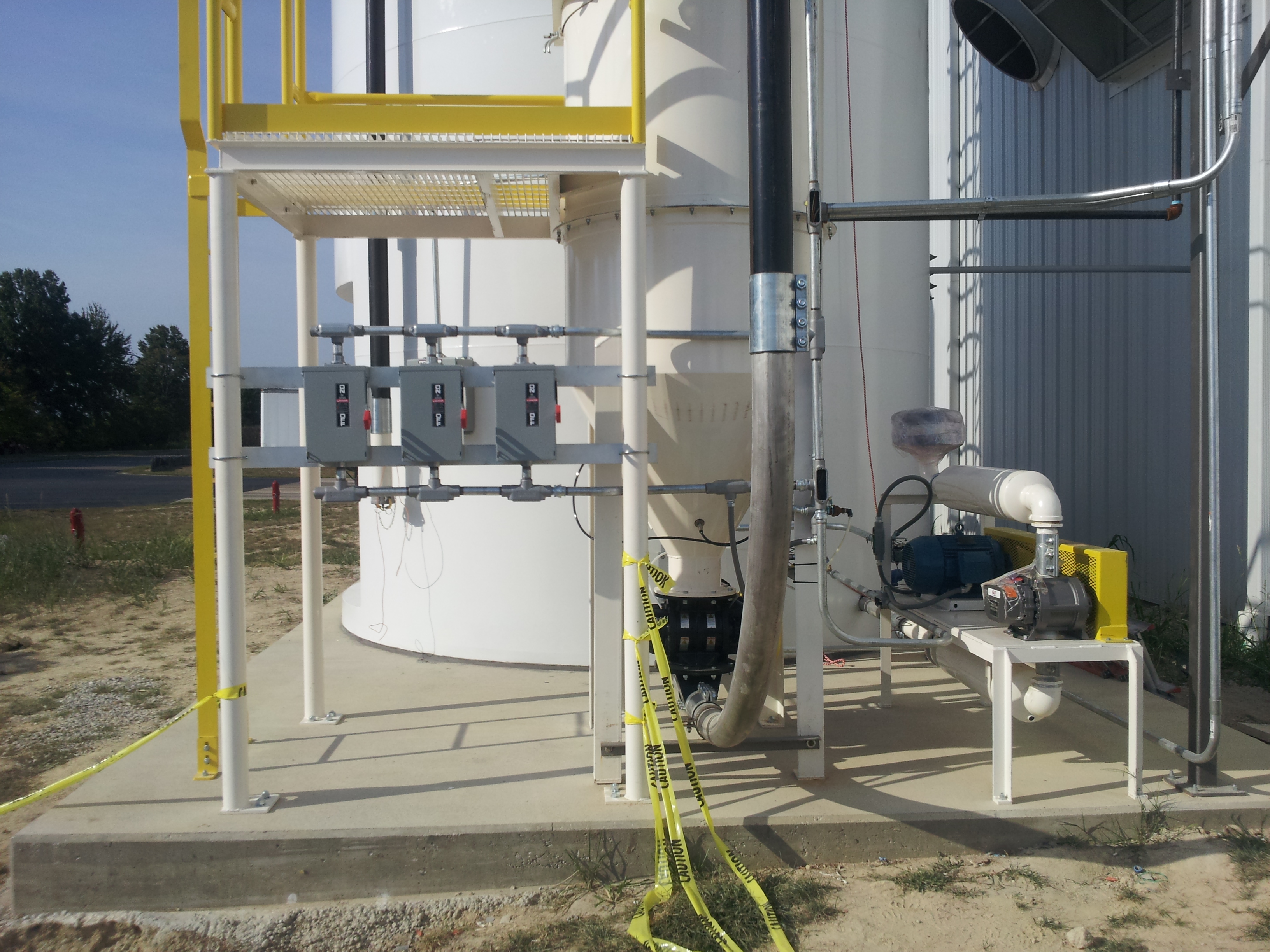

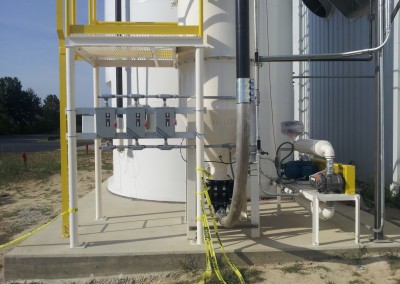

Equipment Pad
Silo Equipment Installtion

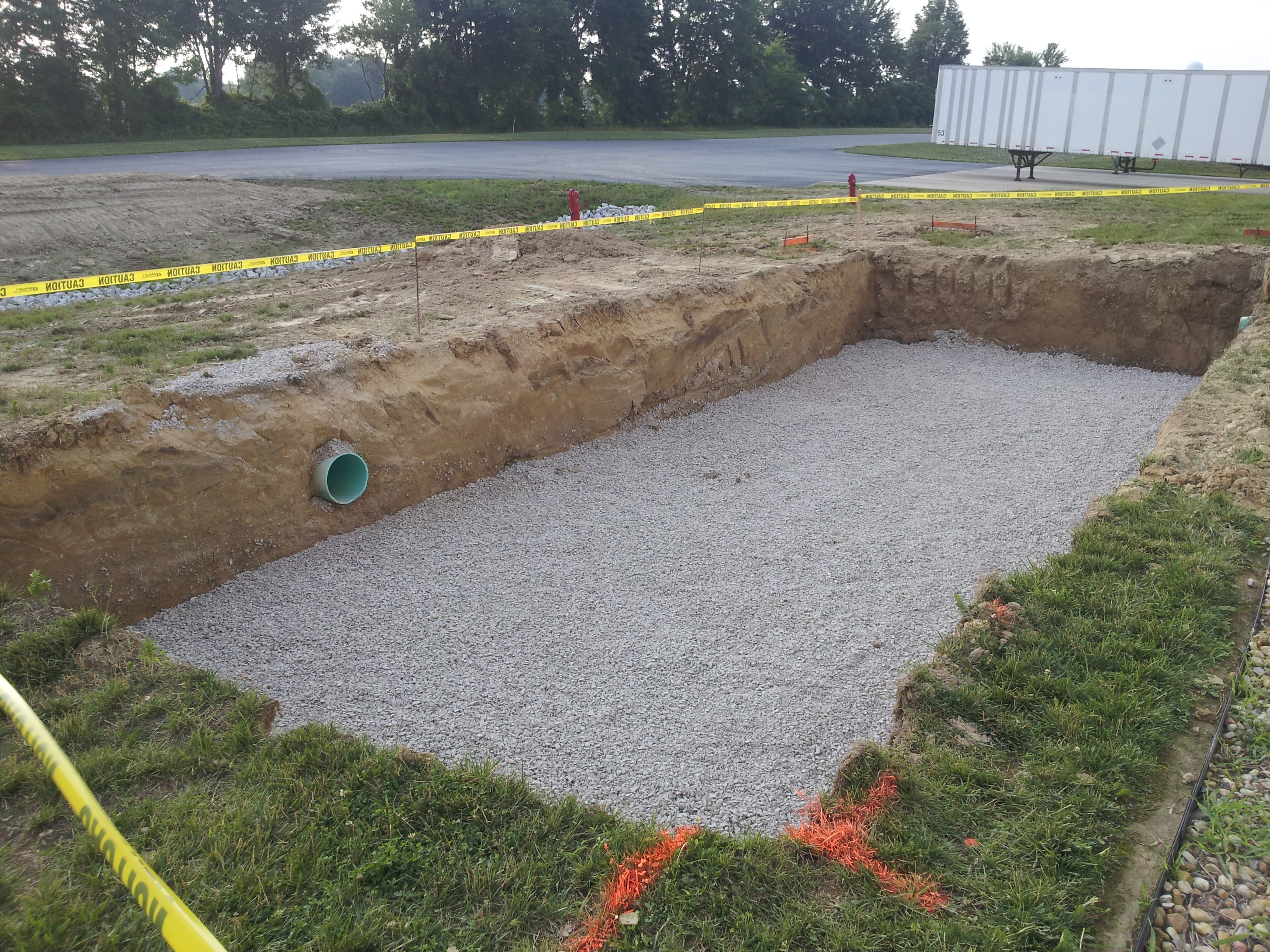

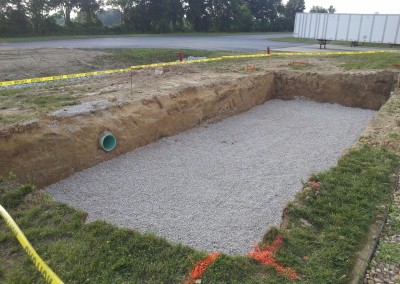

Excavation
Excavation for Silo Foundation

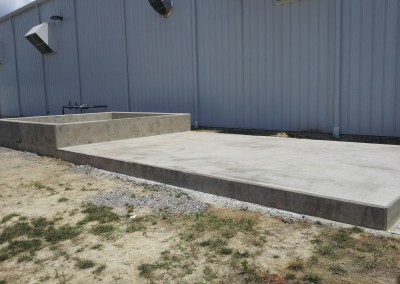

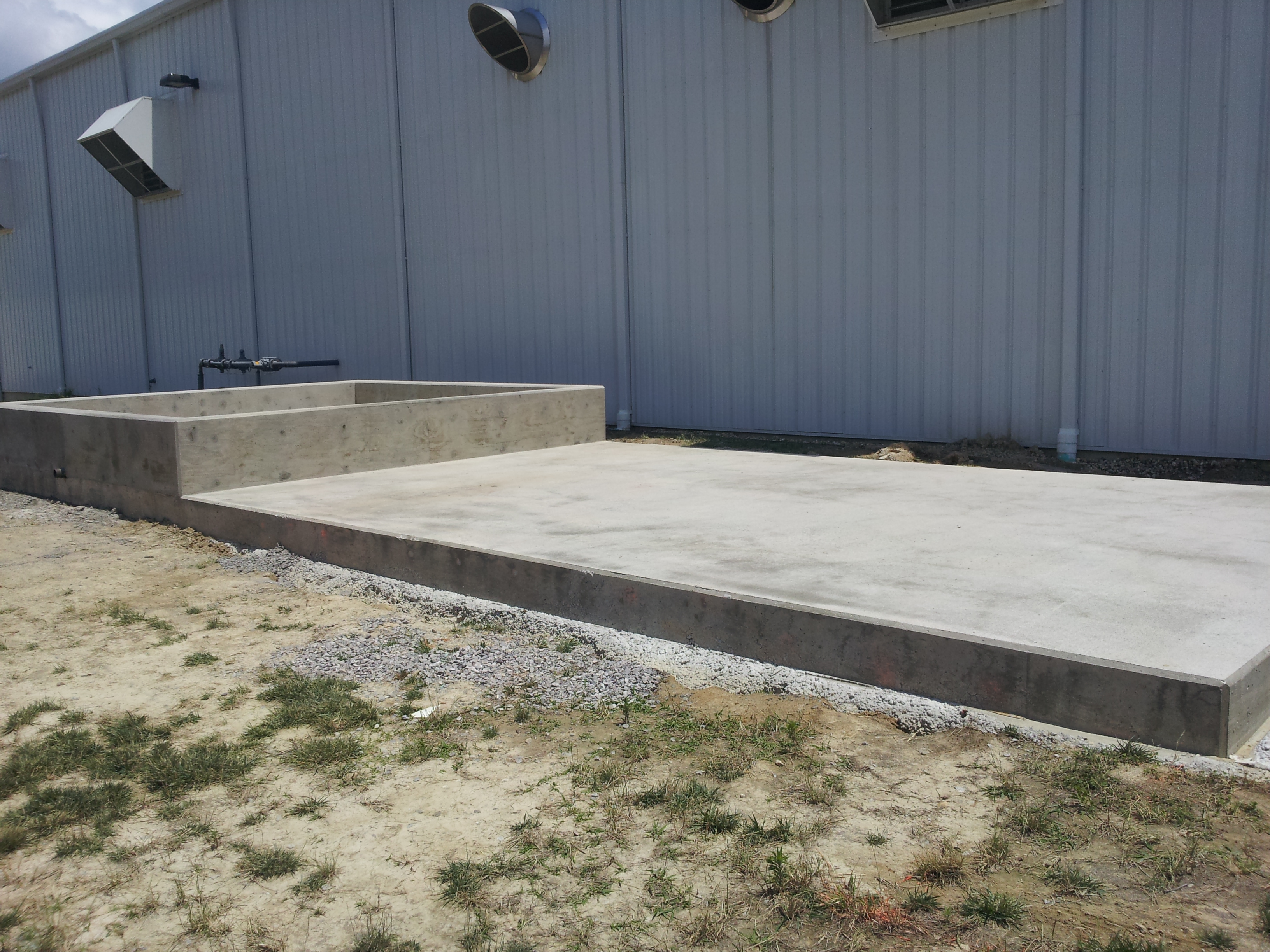

Finished Foundation
Silo Foundation Pad

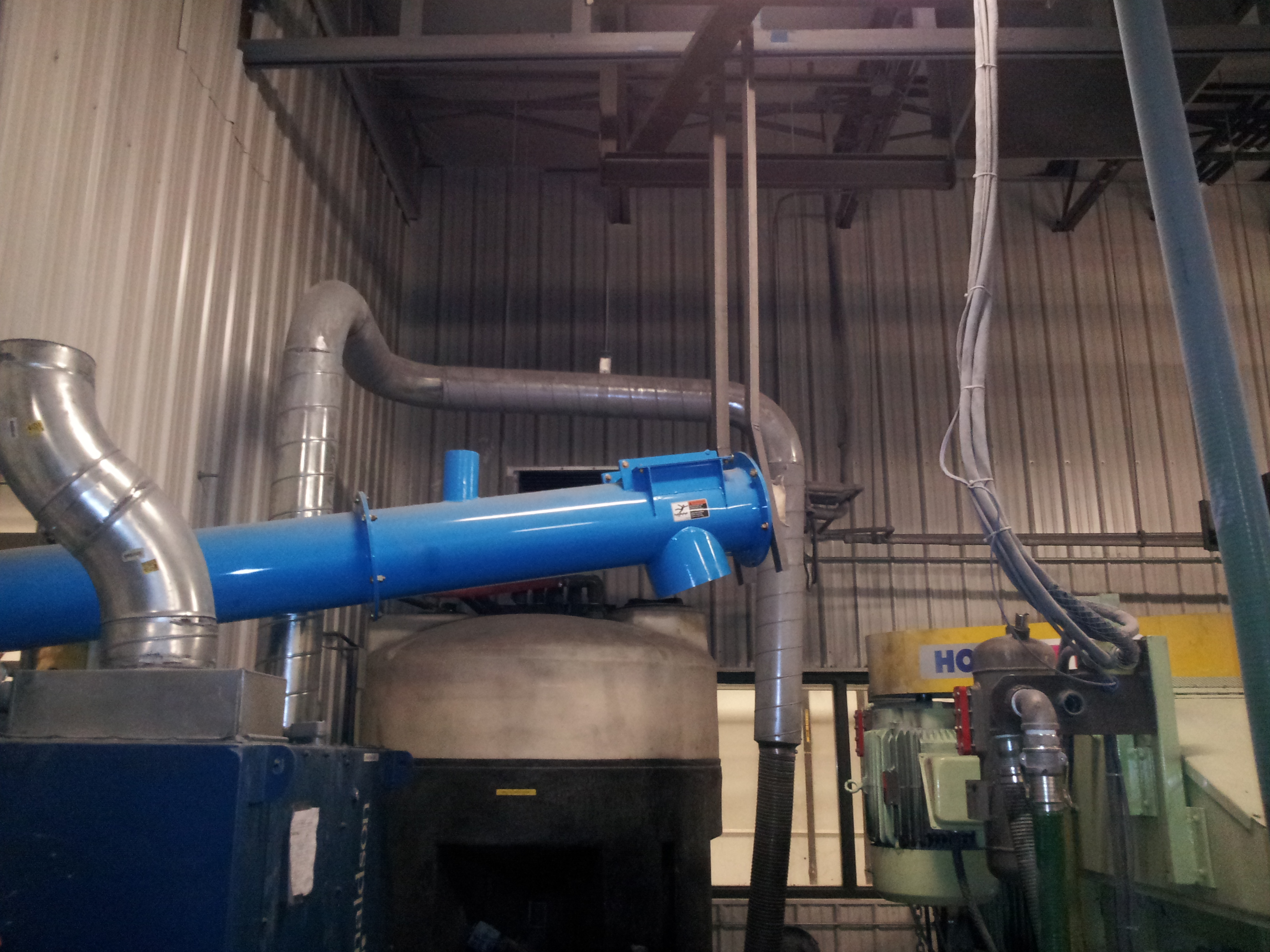

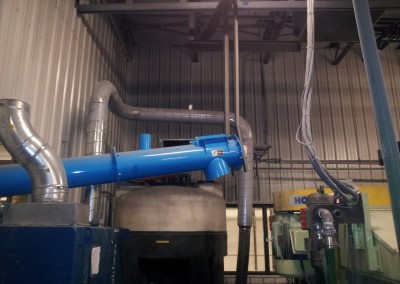

Incline Screw Conveyor
Incline Screw Conveyor

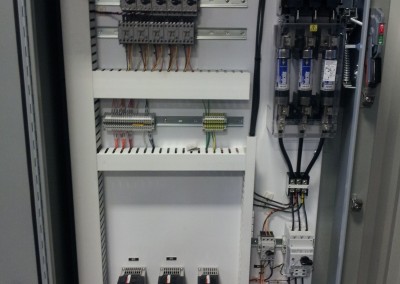

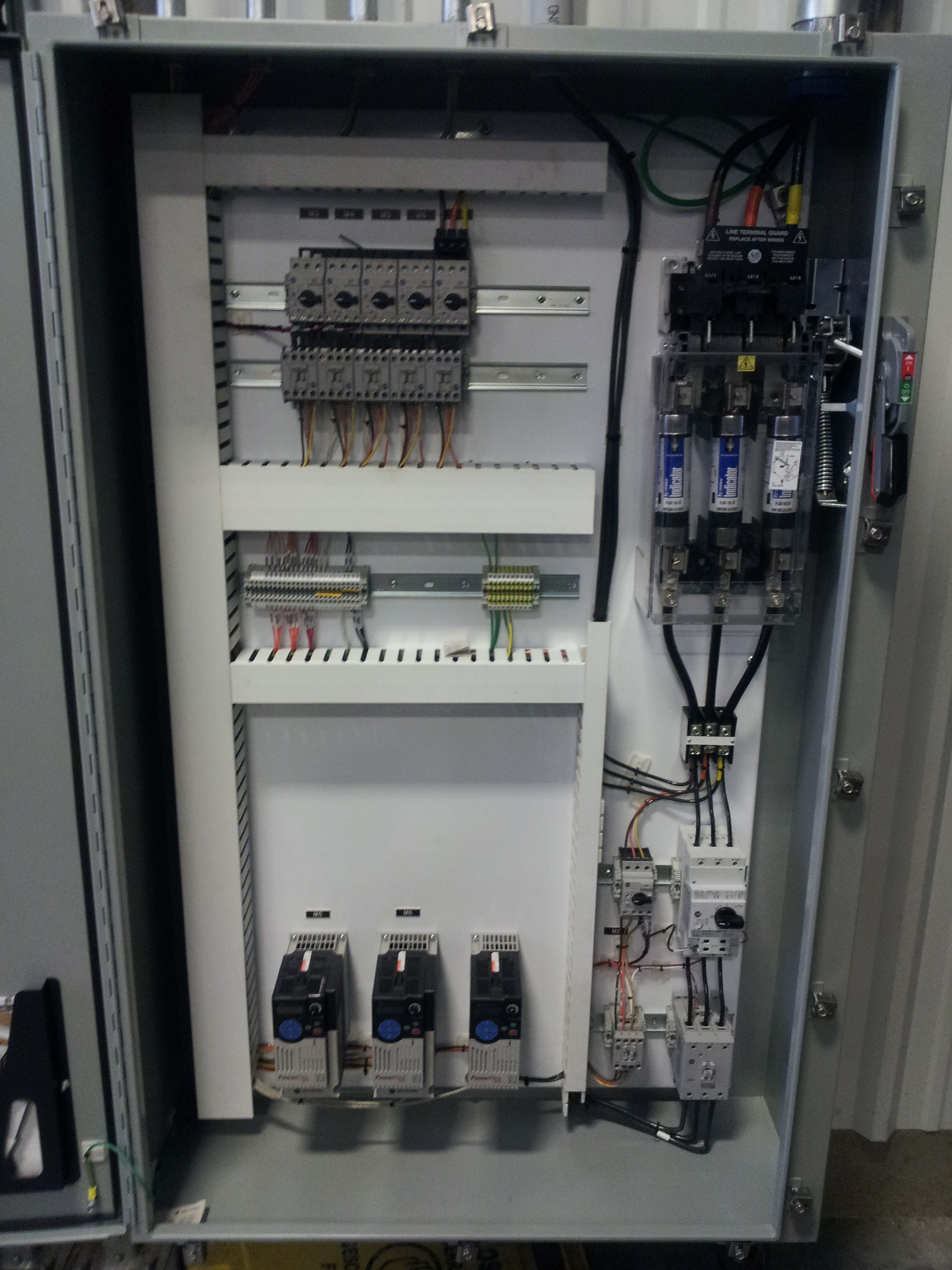

Motor Control Panel
Motor Control Panel

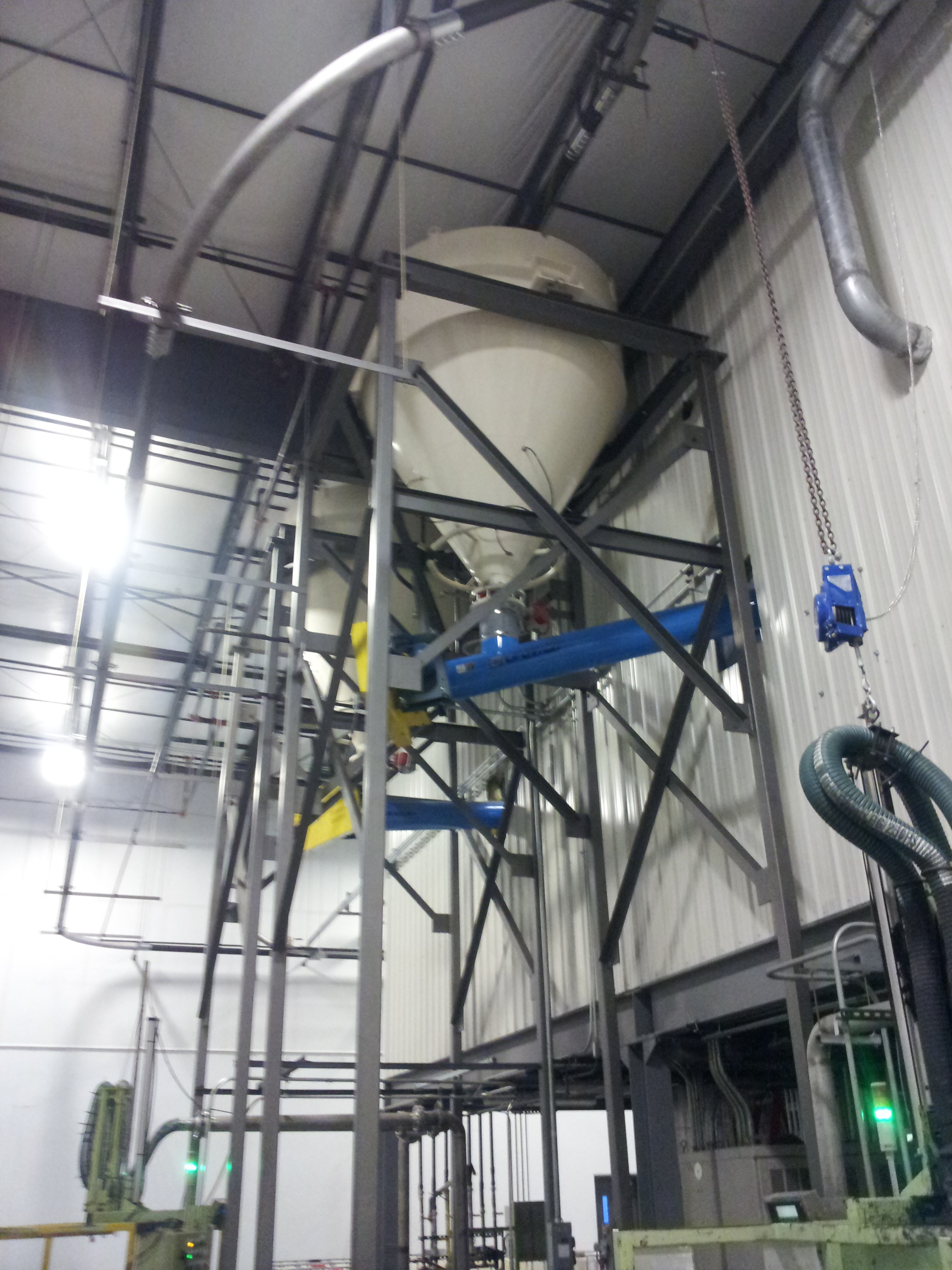

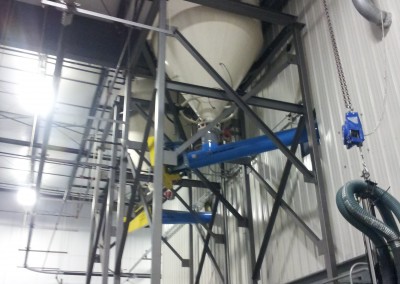

North Scale Hopper
Scale Hopper N View

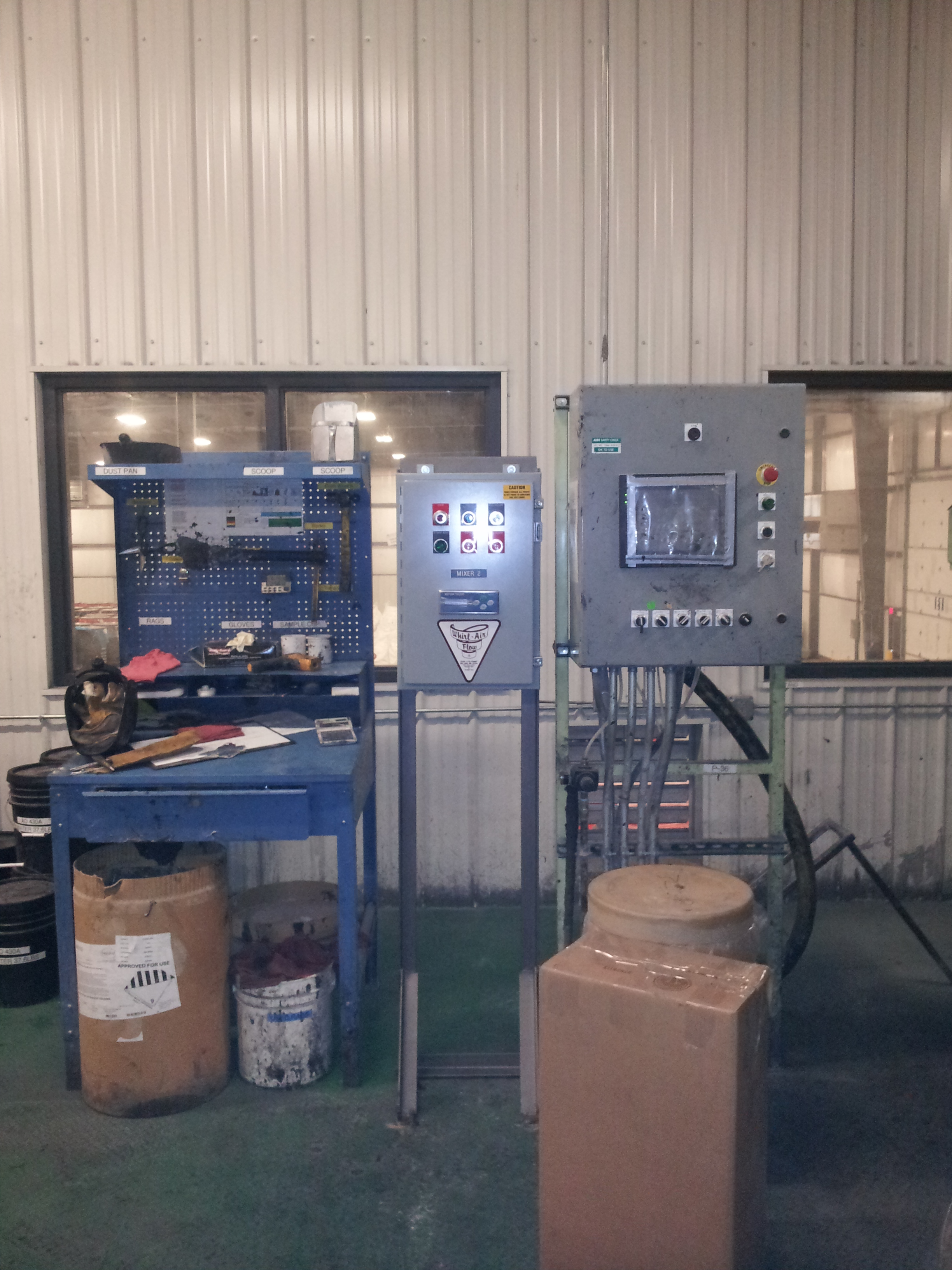

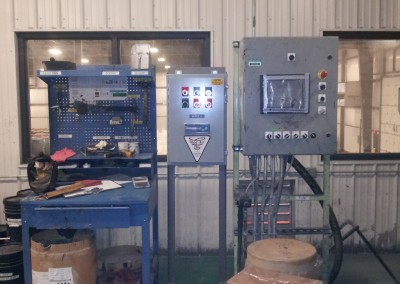

Operators Panel
Operator Control Panel

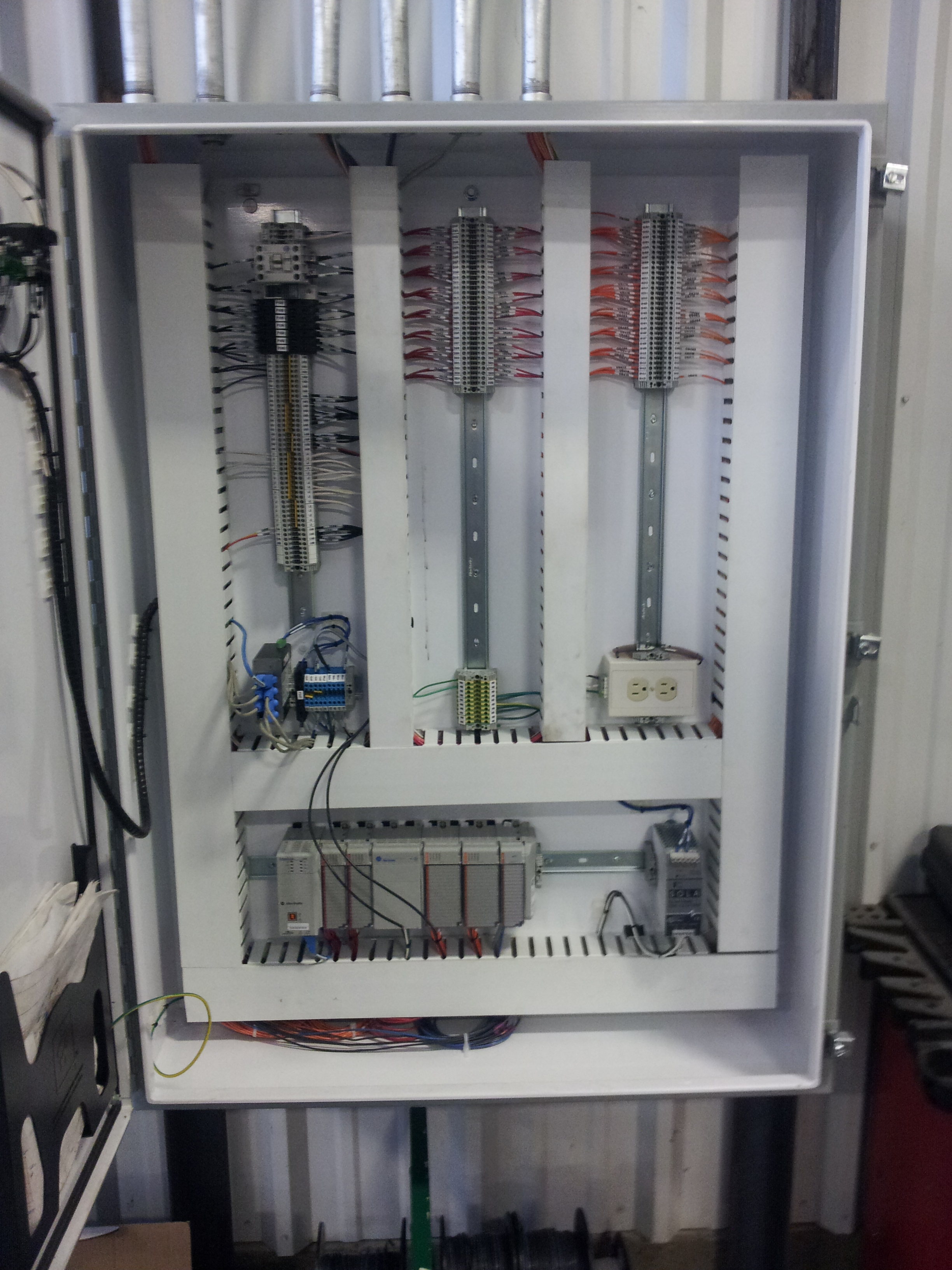

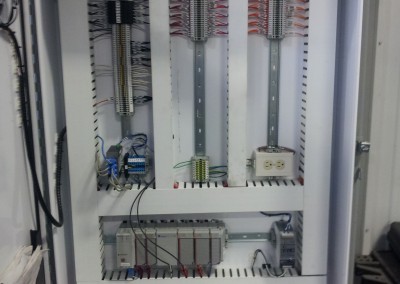

PLC Panel
PLC Panel Interior

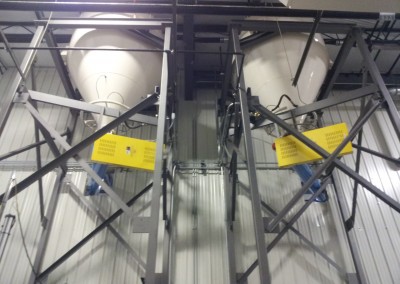

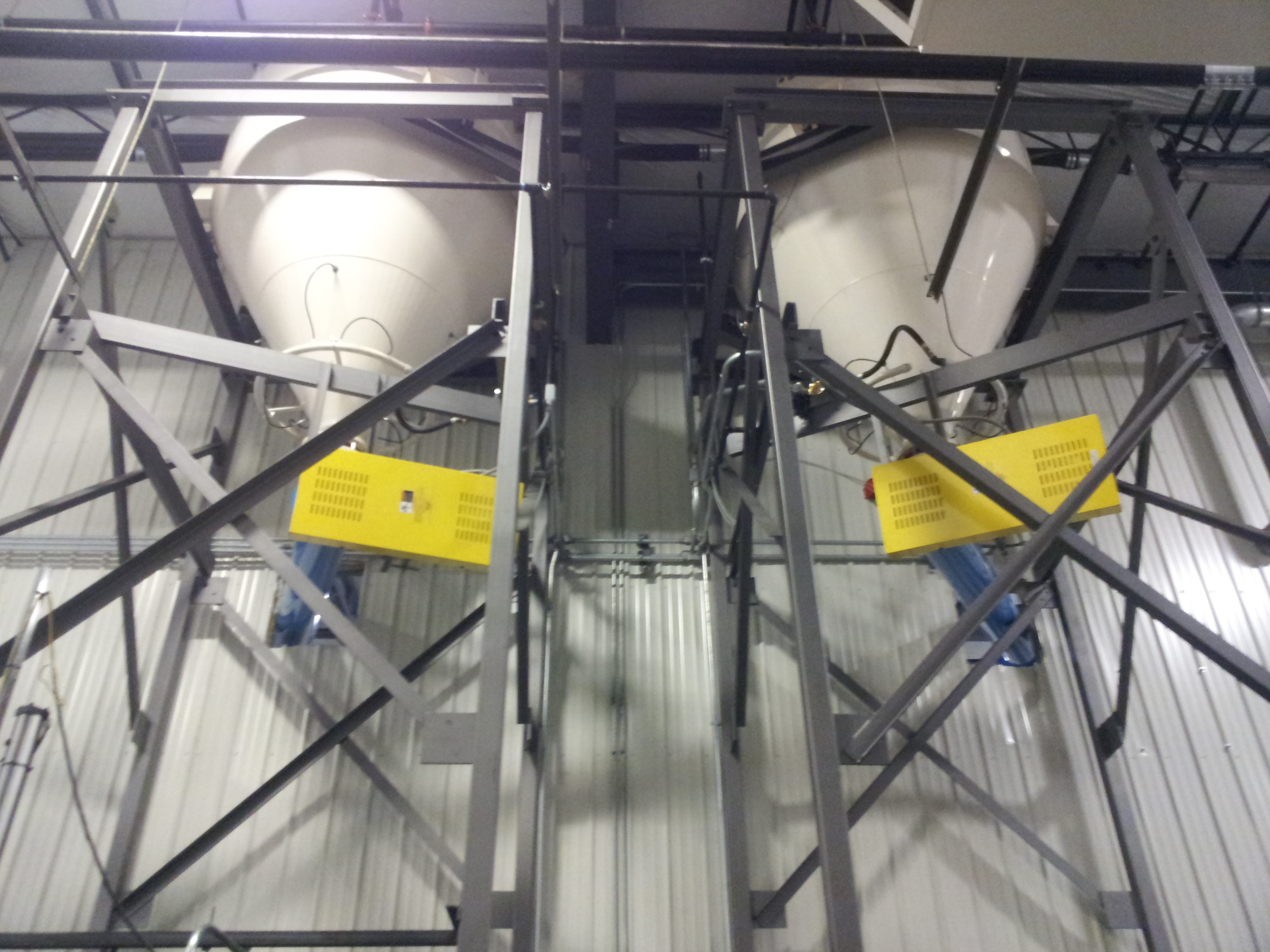

Scales Side-by-Side
Scale Hopper E View

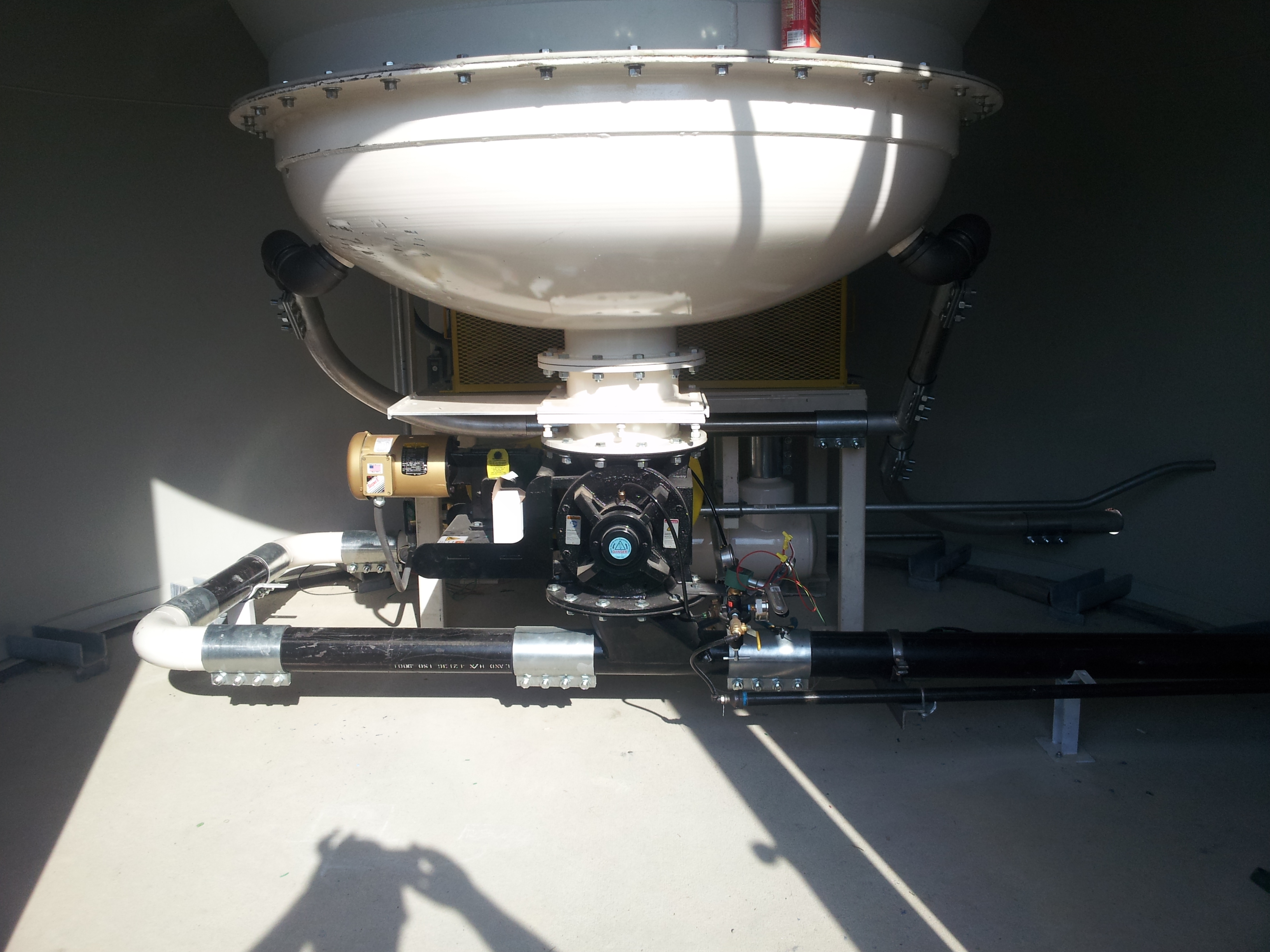

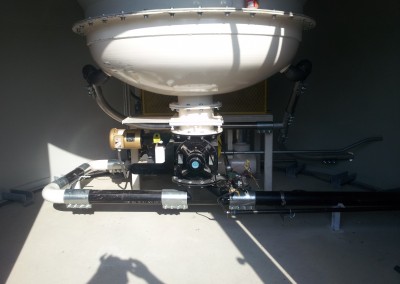

Silo Skirt View
Silo Interior Equipment

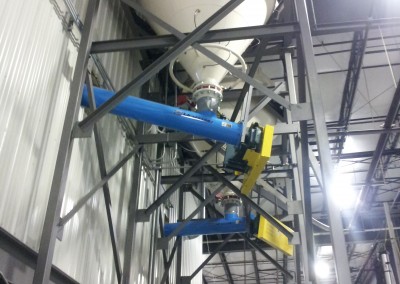

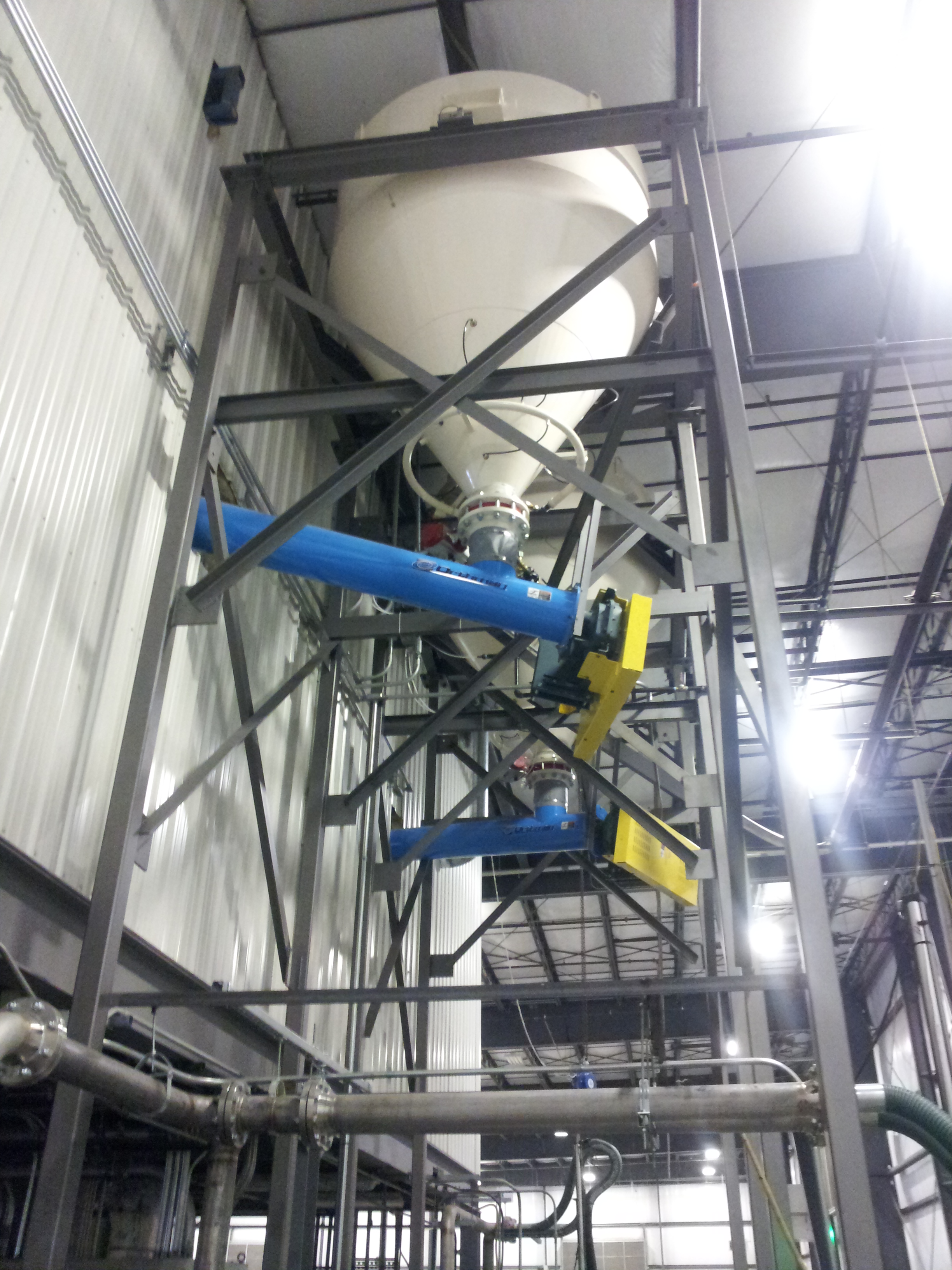

South Scale Hopper
Scale Hopper S View
